[RPA] Orchestrator - Non Working Days 판단

목표

Studio에서 Orchestrator Non Working Days 정보 호출하기



---

변수 선언

변수명	타입
response	String
JObj	JObject
AccessToken	String

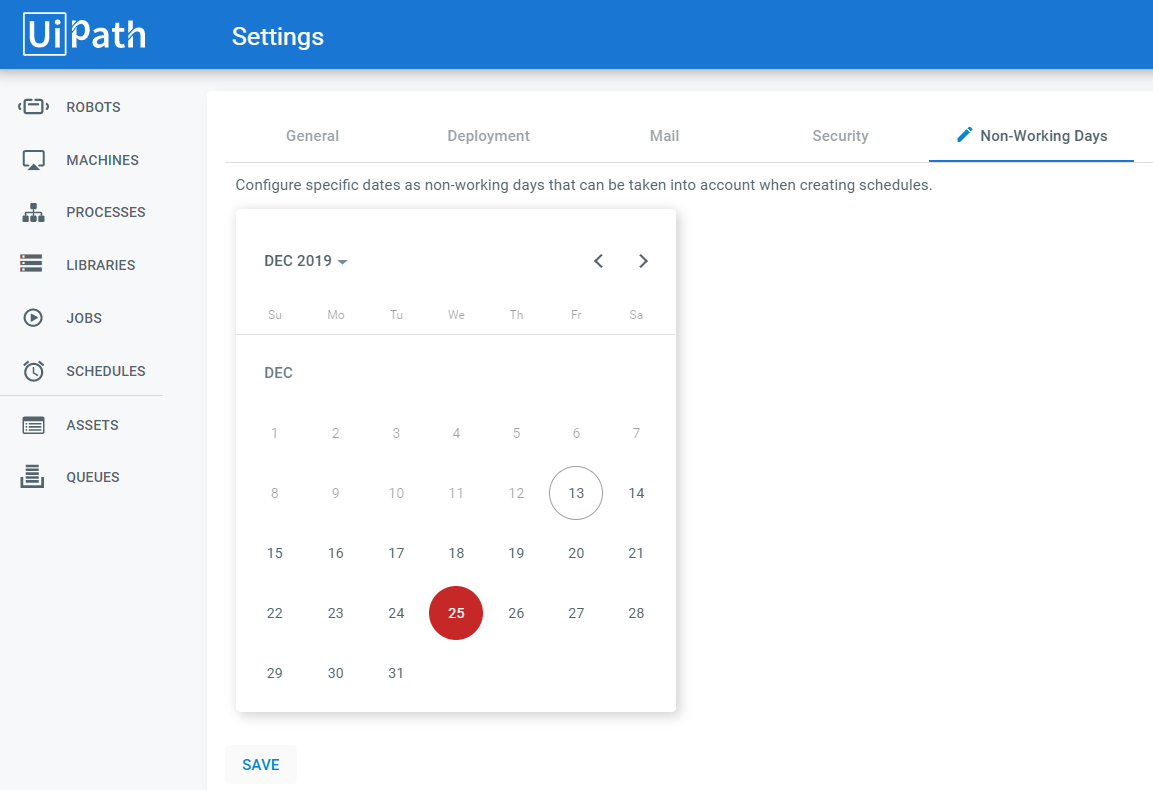

Orchestrator - Non-Working Days 설정

Setting > Non-Working Days 탭에서 저장하며, tenant 단위로 구분됨





1. Access tocken 요청

1.1 HTTP Request

[ HTTP Request Activity ]

• EndPoint : Orchestrator주소/api/accont/authenticate
  예 ) "https://demo.uipath.com/api/account/authenticate"
• Method : POST
• BodyFormat : application/xml

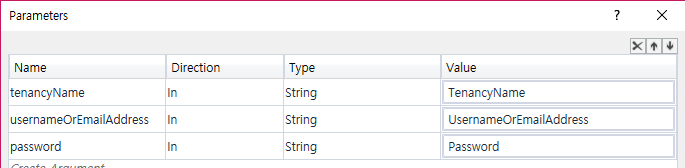

• Parameters : tenancyName, usernameOrEmailAddress, password (모두 String type)

• Result : response

1.2 HTTP Request 결과에서 AccessToken 할당

[ Deserialize json Activity ]

• JsonString : response
• TypeArgument : Newtonsoft.Json.LinqJObject
• JsonObject : JObj

[ Assign Activity ]

  - Bearer [access_token]형태



AccessToken = "Bearer "+JObj ("result").ToString





2. Non Working Days 정보 호출

2.1 HTTP Request

[ HTTP Request Activity ]

• EndPoint : Orchestrator주소/odata/ProcessSchedules
  예 ) "https://demo.uipath.com/odata/Settings/UiPath.Server.configuration.OData.GetCalendar()"
• Method : GET
• OAuth1Token : AcessToken
• BodyFormat : application/xml
• Headers : Content-Type, Authorization (모두 String type)

• Result : response2

2.2 호출결과 가공

[ Deserialize json Activity ]

• JsonString : response2
• TypeArgument : Newtonsoft.Json.LinqJObject
• JsonObject : JObj2

[Assign - 불필요한 데이터 삭제]

sResult = jObj2("ExcludedDates").ToString.Replace("[",string.Empty).Replace("]",string.Empty).Replace(system.Environment.NewLine, "").Replace(" ","").Replace("T00:00:00Z","").Replace("""","")



[Assign - NonWorking day 배열로 생성]

arrNonWorkingDays = sResult.Split(",".ToCharArray)





>> arrNonWorkingDays.Contains(Now.ToString("yyyy-MM-dd")) 함수로 Non-Working days에 포함됐는지 확인할 수 있다
