[RPA] Orchestrator api로 스케줄 정보 호출하기

목표

Studio에서 Orchestrator Schedule정보 호출하기

---

변수 선언

변수명	타입
response	String
JObj	JObject
AccessToken	String



1. Access tocken 요청

1.1 HTTP Request

[ HTTP Request Activity ]

• EndPoint : Orchestrator주소/api/accont/authenticate
  예 ) "https://demo.uipath.com/api/account/authenticate"
• Method : POST
• BodyFormat : application/xml

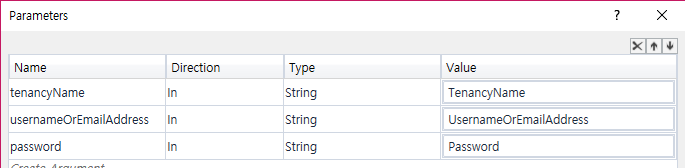

• Parameters : tenancyName, usernameOrEmailAddress, password (모두 String type)

• Result : response

1.2 HTTP Request 결과에서 AccessToken 할당

[ Deserialize json Activity ]

• JsonString : response
• TypeArgument : Newtonsoft.Json.LinqJObject
• JsonObject : JObj

[ Assign Activity ]

  - Bearer [access_token]형태



AccessToken = "Bearer "+JObj ("result").ToString





2. 스케줄 정보 호출

2.1 HTTP Request

[ HTTP Request Activity ]

• EndPoint : Orchestrator주소/odata/ProcessSchedules
  예 ) "https://demo.uipath.com/odata/ProcessSchedules"
• Method : GET
• BodyFormat : application/xml; charset=utf-8

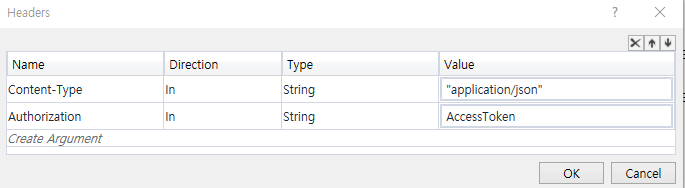

• Headers : Content-Type, Authorization (모두 String type)



• Result : response

>> response의 "StartProcessCronSummary" 속성으로 스케줄을 확인할 수 있다.



[기타 참고사이트]

https://docs.uipath.com/orchestrator/v2018.4/reference#building-api-requests

https://www.uipath.com/hubfs/Documentation/OrchestratorAPIGuide_2016.2/UiPathOrchestratorAPIGuide_2016.2.html

https://postman.uipath.rocks/?version=latest#3b1b23d7-a019-4e6c-ab7d-4d781b08281f

https://docs.uipath.com/orchestrator/v2018.4/reference#logical-resources-and-metadata

UiPath Orchestrator

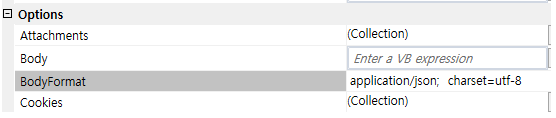

[한글 깨짐 있는 경우]

application/json;  charset=utf-8
